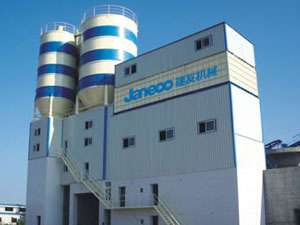

K Series Central Mix Batch Plant with Top Mounted Cement Silo
Features of K Series Central Mix Batch Plant with Top Mounted Cement Silo
1. Adopting the cement storage peak, the concrete bottom and two-deck steel octagon structure, which occupy small size;
2. The discharge height is 3.8m and it can stir kinds of concrete;
3. With the loader to feed the material and the aggregate storage hopper can store four kinds of aggregates simultaneously;
4. The aggregate storage hopper can store a tin of measured aggregate;
5. The powder batching system is equipped with four cement silos and the fly ash is conveyed by respective wind groove;
6. Water and liquid additives are conveyed by the water pump;
7. Equipped with microcomputer control and electronic measuring scales;
8. With the functions of screen display, automatically equalizing the fall, and equalizing the sand containing water rate (gravel moisture meter to be ordered separately);
9. Can be manual and automatic controlled;
10. Equipped with a printer and a four-point monitoring system to achieve centralized control and the overall management.
Application of K Series Central Mix Concrete Batch Plant
Being a kind of key concrete equipment, this energy-saving batch plant is suitable for stirring hard and dry concrete, and it is widely used in larger than the medium scale project construction, water, electricity, roads and other projects, as well as in the large and medium sized precast concrete plant and ready-mix concrete plant.
| Model | HLS120K | HLS180K | HLS240K | |
| Production capacity (m3/h) | 120 | 180 | 240 | |
| Concrete mixer | Model | JS2000 | JS3000 | JS4000 |
| Power (kW) | 2 x 37 | 2 x 55 | 2 x 75 | |
| Output capacity (m3) | 2 | 3 | 4 | |
| Aggregate size (gravel/cobble stone) (mm) | ≤60/80 | ≤60/80 | ≤60/80 | |
| Aggregate hopper | Hopper capacity (m3) | underground bin | underground bin | underground bin |
| Belt conveyor deliverability (t/h) | 600 | 800 | 1000 | |
| Weighing scope and measuring accuracy | Aggregate (kg) | 4 x (2000±2%) | 4 x (3000±2%) | 4 x (4000±2%) |
| Cement (kg) | 1000±1% | 1500±1% | 2000±1% | |
| Fly ash (kg) | 400±1% | 600±1% | 800±1% | |
| Water (kg) | 400±1% | 600±1% | 800±1% | |
| Admixture (kg) | 40±1% | 60±1% | 80±1% | |
| Discharging height (m) | 3.8 | 3.8 | 3.8 | |
Note: The above parameters are subject to change without prior notice.
